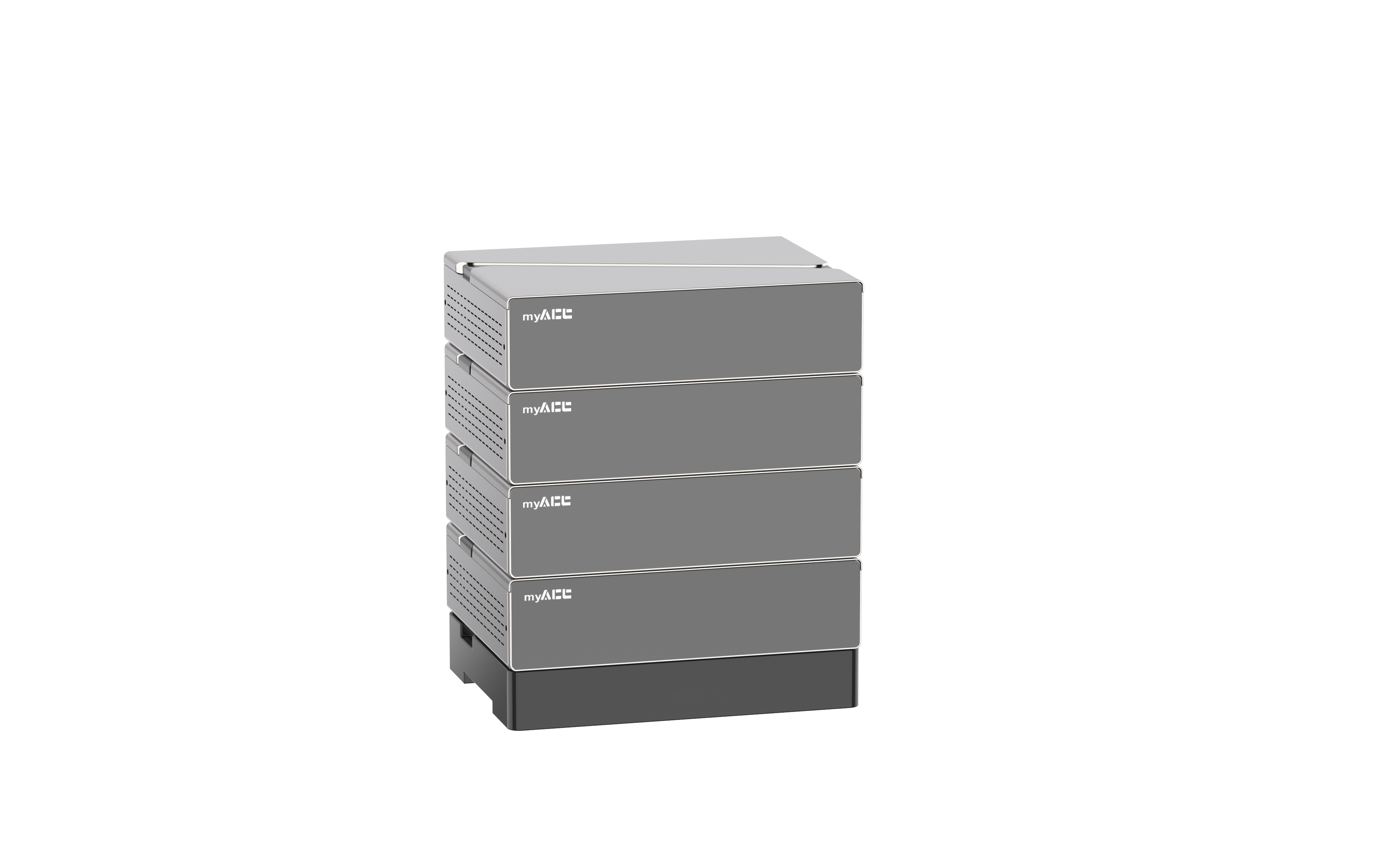

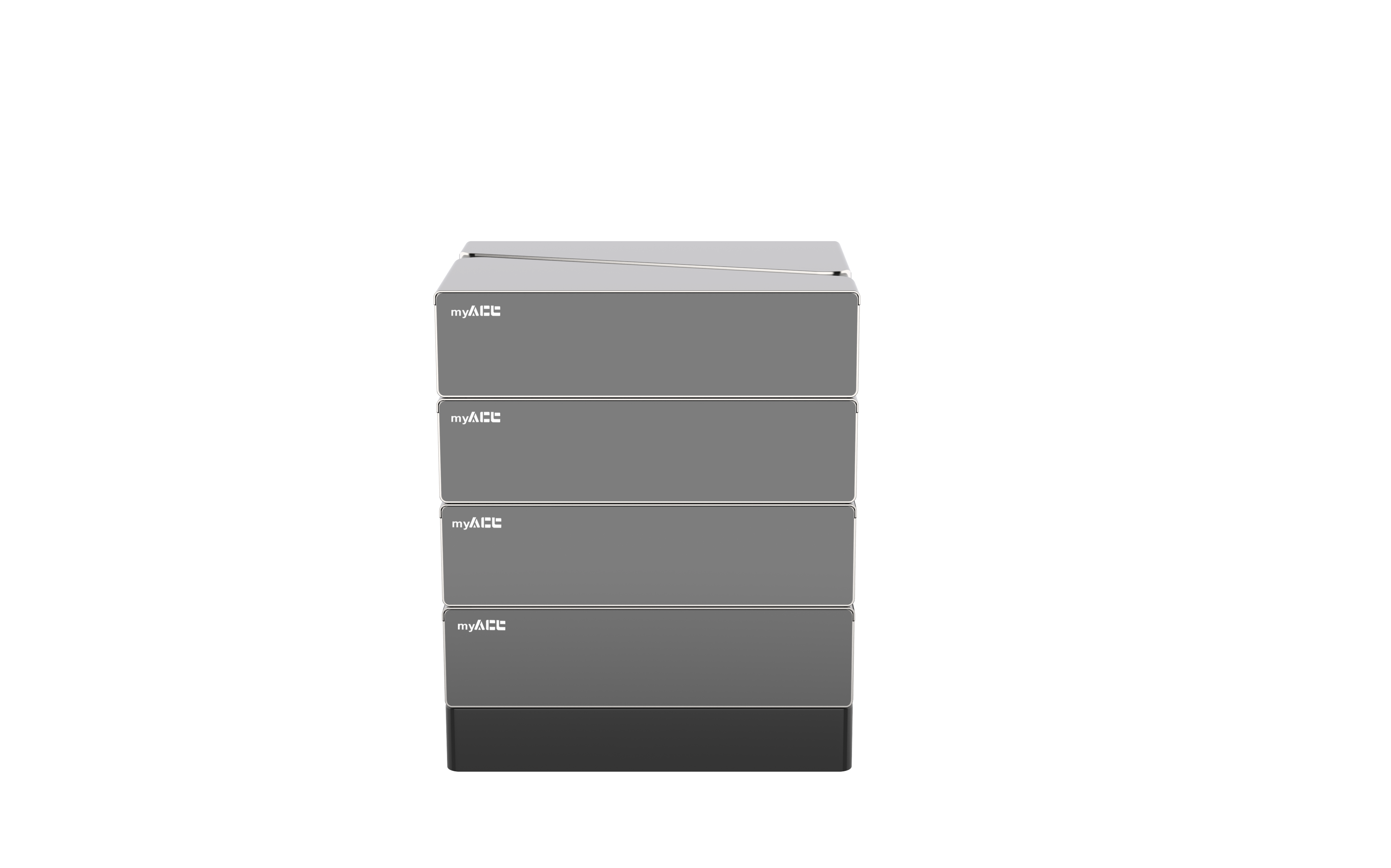

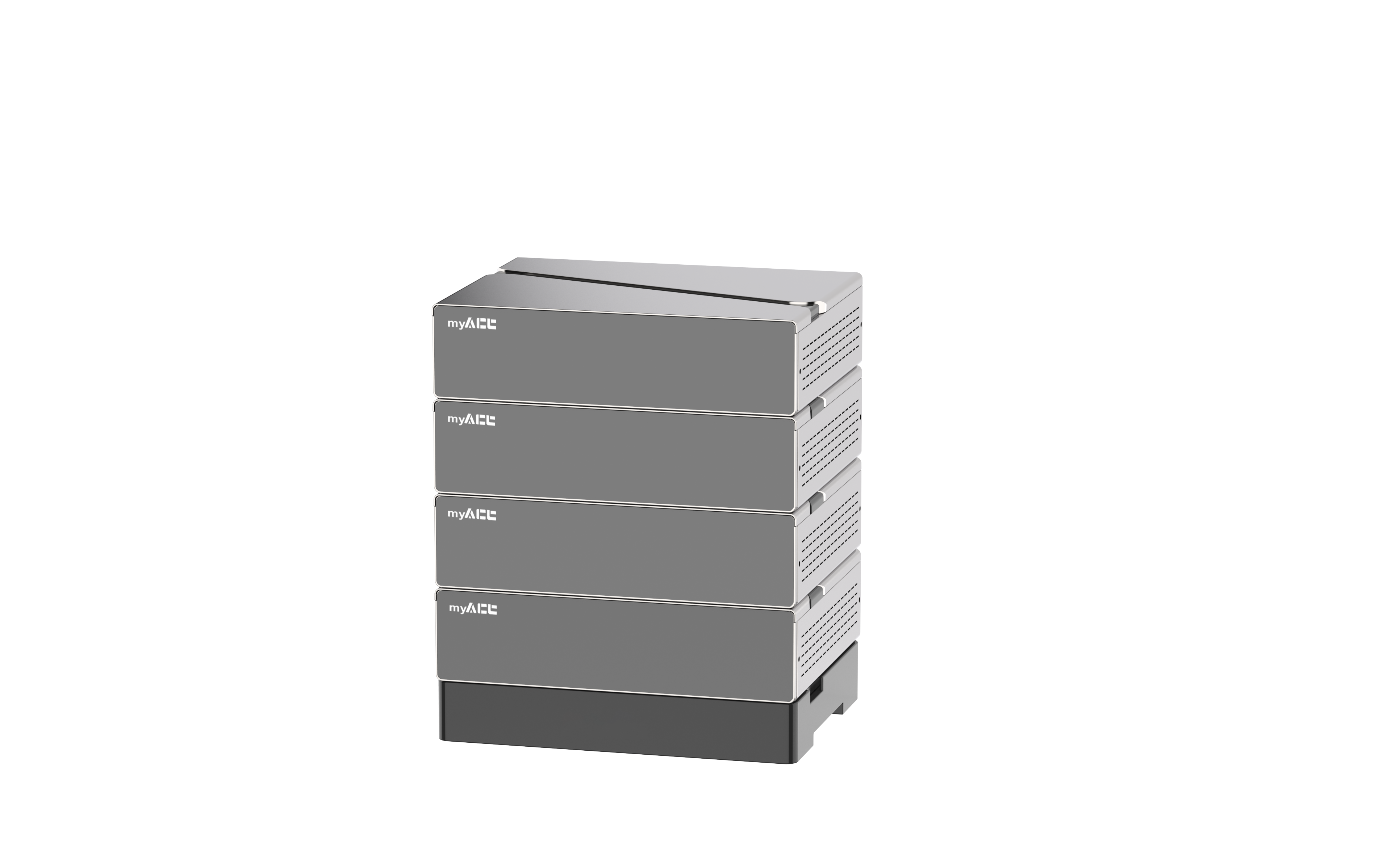

This series battery pack is a 51.2V battery system with One*N minimalist + LEGO stacking design, which can support two modular combination mounting methods: wall mount and stack.
This battery pack system could consists of 1~4 battery modules connected in parallel, with a capacity between 5 and 20kWh (available). Multiple battery pack systems can be connected in parallel to form a maximum of 60kWh systems.
Passed certification: UL1973(UL)、IEC62619（TUV）、CE-EMC、UN38.3、CEI0-21、UKCA、VDE2510-50、IEC-EN62477.
Compatible Inverters: Deye、Growatt（SPH/SPF）、Goodwe、Victron、Sofar、SMA 、SRNE、LUX、Solis、TBB、 Soruide、Megarevo、Sungrow、Afore、Sacolar、SMK solar、Voltronic.
Features
- Minimalist exterior design
European minimalist style appearance, hanging on the wall, stacked mounting design.
- Automatic configuration
Automatically assign addresses without dialing.
- Supports wireless readings
Support Bluetooth APP wireless reading function.
- Wide compatibility
Match 20+ mainstream inverters.
- Multi-dimensional security design
Three-level security protection + first-level security warning (Structure + Cell + Electrical + Abnormal Information Feedback)
| Battery Model | HP10-Box5 Pro | HP10-Box10 Pro | HP10-Box15 Pro | HP10-Box20 Pro |
Cell Module | HP-10 Box5( 5.12 kWh ) | |||
Number of Modules | 1 | 2 | 3 | 4 |
Available Energy | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh |
Maximum output power | 4.1 kW | 8.2 kW | 12.3 kW | 12.3 kW |
Nominal Capacity | 5.4kW,10S | 10.5kW,10S | 15.5kW,10S | 20.0kW,10S |
Round-Trip Efficiency | ≥94.0 % | |||
Nominal Voltage | 45.0~56.4V | |||
Dimensions ( W / H / D ) | 580 * 250 * 440 mm | 580 * 400 * 440 mm | 580 * 550 * 440 mm | 580 * 700 * 440 mm |
Weight | 58 ± 2 kg | 105 ± 2 kg | 152 ± 2 kg | 200 ± 2 kg |
Communication | Can / RS485 | |||
Installation | Floor / Wall mounting | |||
Operating Temperature | Charge：-5℃~+50℃ ；Discharge：-20℃~+50℃；Recommended：+15~+35℃ | |||
Scalability | Max. 3 systems in parallel / 60 kWh | |||
