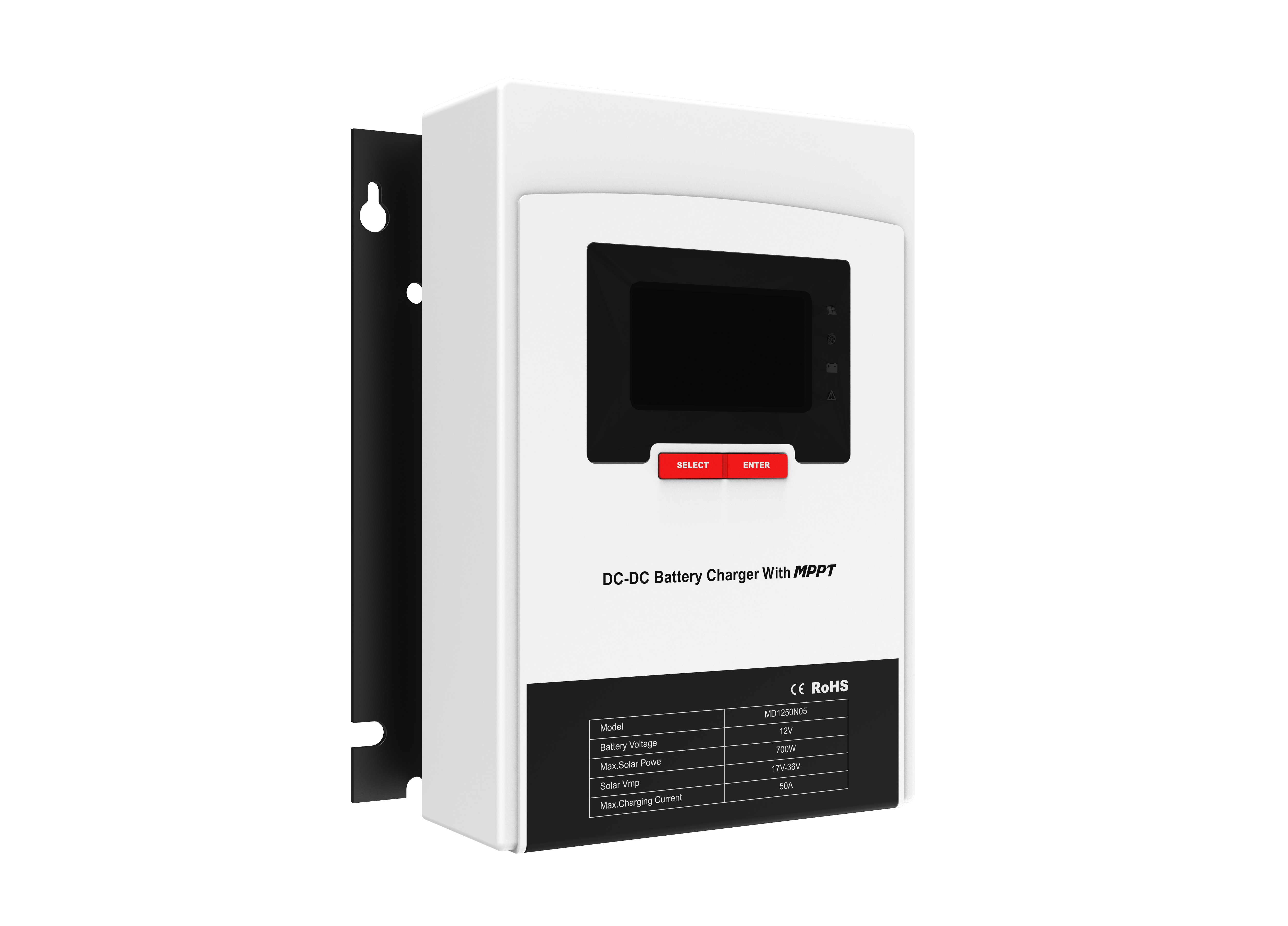

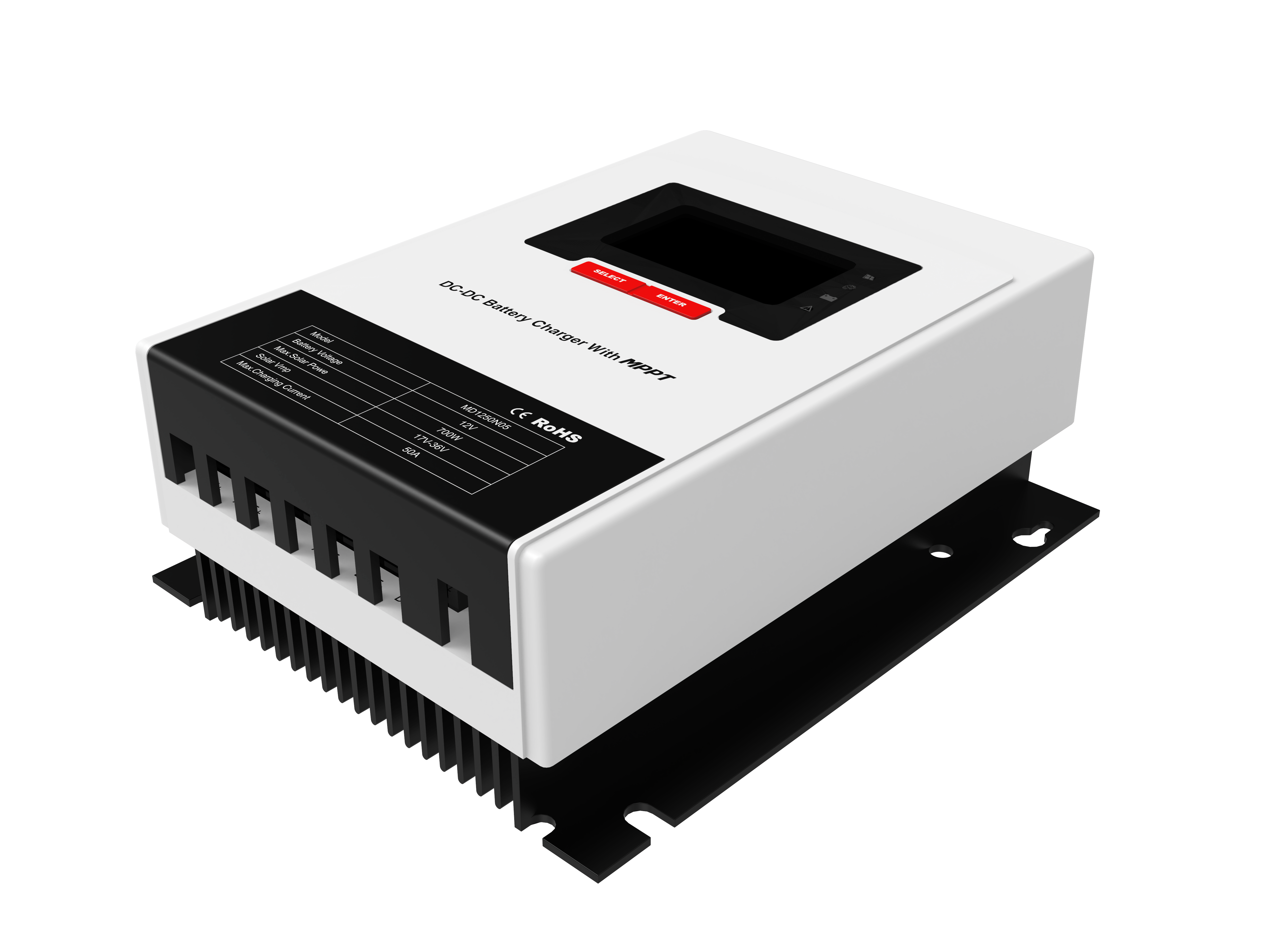

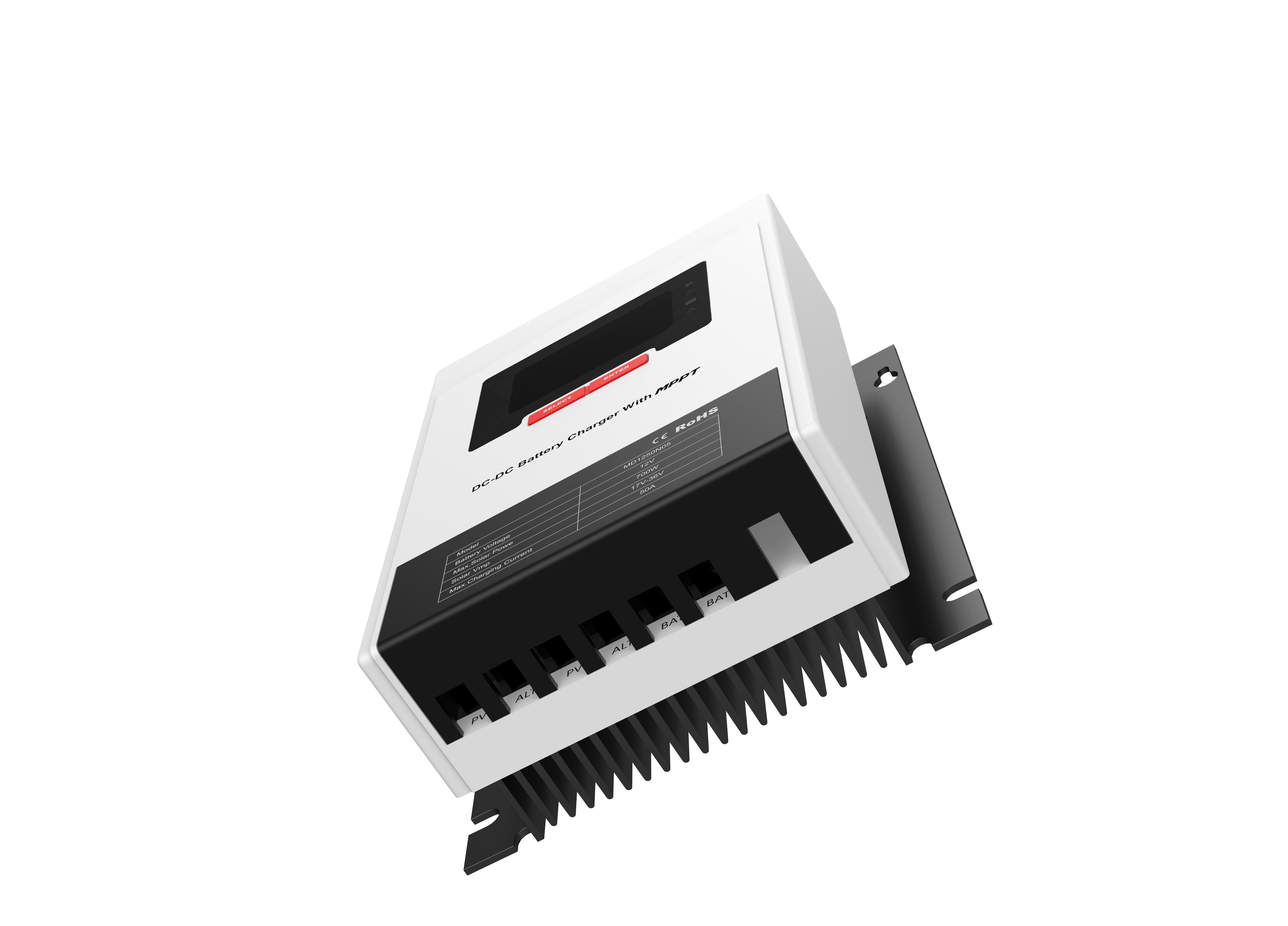

The MPPT controller optimizes every ray of sunshine, converting solar energy into power. Suited for Solar RV Systems, Independent Microgrids, Rural Electrification.
Leisure Battery Type Support: Lead-acid / Li-ion / User Defined
Starter Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
Certification |
|
| Safety | IEC62109 |
| EMS | IEC61000, FCC sDoC |
| RoHS | YES |
Features
- Specifically designed for RV
Can be connected to both PV and alternator, can charge both the leisure battery and the starter battery.
- All-in-One
4 charging mode，be your reliable power steward, helps you save space and wire.
- User-Friendly
Easy to install and simple to use, natural cooling, absolutely quiet
- Efficient
MPPT with up to 99.9% efficiency, support solar panels 2 in series/2 in parallel connection
- Safety
360 degrees of security from hardware to software
- Intelligent
Supports RV-C communication
| Model | MD1230N05 / M1230N05D | MD1250N05/M1250N05D |
| PV INPUT | ||
| Max. Voltage of Open Circuit | 55Vdc | |
| MPPT Voltage Range | 17～36Vdc | |
| Max.PV Input Current | 27A | 45A |
| Max.PV Input Power | 400W | 700W |
| LEISURE BATTERY | ||
| Battery Type | Lead-acid / Li-ion / User Defined | |
| Rated Battery Voltage | 12Vdc | |
| Battery Voltage Range | 9~16Vdc | |
| Max. MPPT Charging Current | 30A | 50A |
| Max. Alternator Charging Current | 35A | 60A |
| STARTER BATTERY / ALTERNATOR | ||
| Battery Type | Lead-acid | |
| Rated Battery Voltage | 12/24Vdc | |
| Max. Alternator Input Voltage | Conventional Alternator | 13.2~16Vdc / 26.4~32Vdc |
| Alternator Charging Mode | Euro 6 Standard Alternator | 12~16Vdc / 24~32Vdc |
| Buck,Boost,Buck-Boost | ||
| EFFICIENCY | ||
| MPPT Tracking Efficiency | >99% | |
| Max. Charging Conversion Efficiency | 98% | |
| COMMUNICATION | ||
| Embedded Interfaces | TTL、Remote Switch | |
| External Modules | Bluetooth (with APP) | |
| GENERAL | ||
| Weight | 1.92kg（4.23 lb） | 2.15kg（4.73lb） |
| Dimension | 221*175.8*92.4mm（8.7*6.9*3.63in） | |
| Protection Degree | IP32 | |
| Operating Temperature Range | -35°C~65°C（-31℉～149℉） | |
